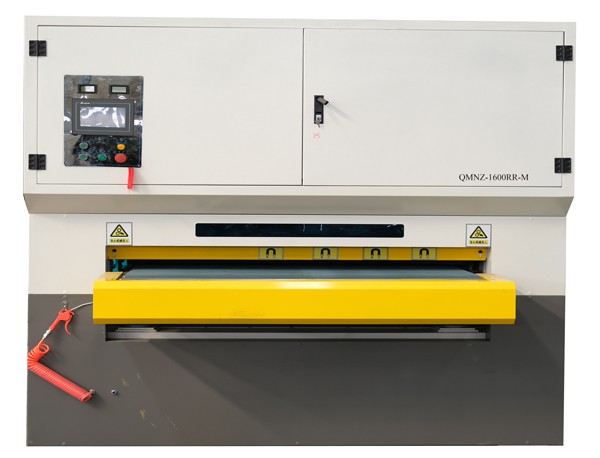

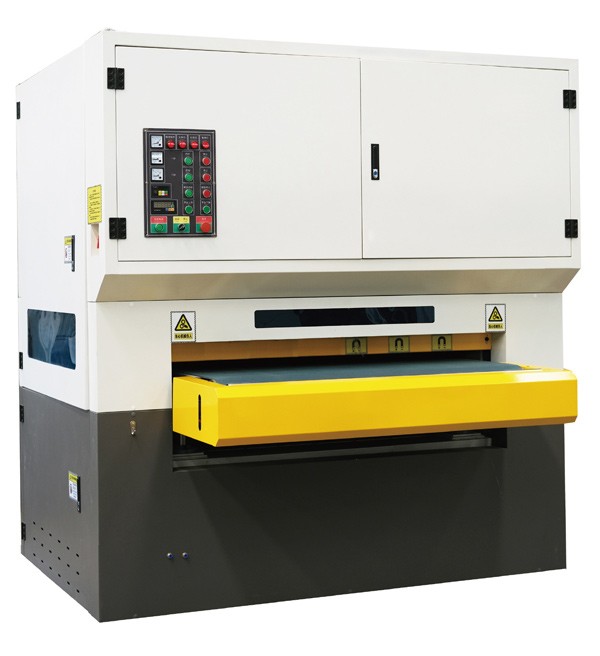

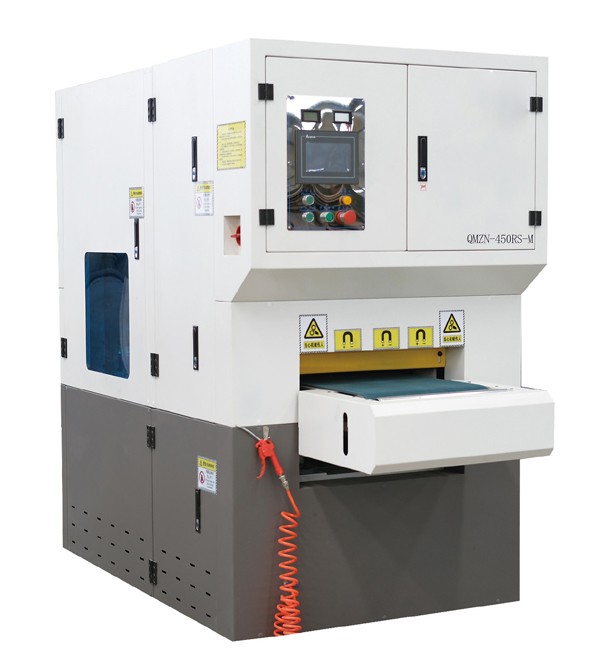

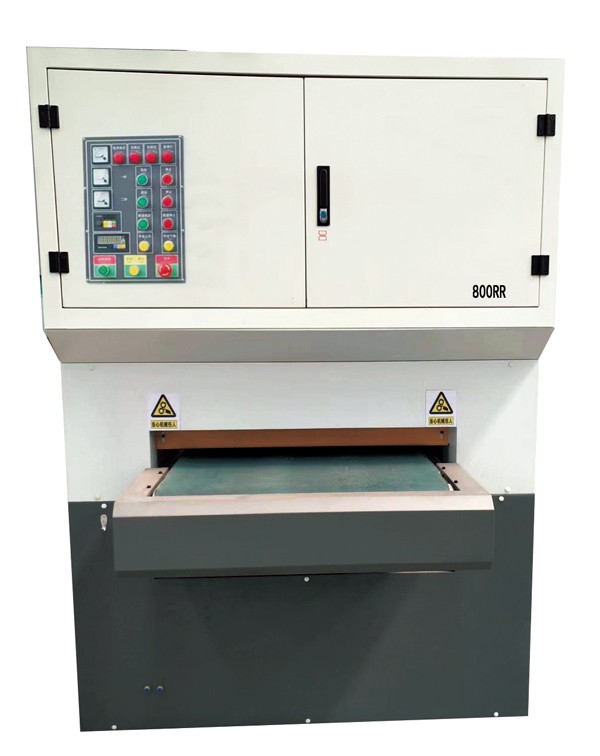

Deburring machine

The deburring series equipment includes a wide sanding belt,rotating brush roller, multi-station combined grinding multi-functional models. The equipment can achieve single-sided or uniform removal of slag and burrs formed by laser cutting, shearing cutting, plasma cutting, flame  cutting,  stamping cutting, machining, stainless steel plates, aluminum plates, copper plates, carbon steel plates, etc. of metal sheets in one pass. Suitable for pre-grinding of metal plate surface, deburring of holes and rounded edges, surface drawing, and removing oxide scales, which saves the trouble of low efficiency, flying dust, and workpiece grinding inconsistencies caused by manual polishing.

RRS-MODEL PRARMETERS
Model	RRS450-M	RRS800-M	RRS1000-M	RRS1300-M	Customize
Maximum working width	450mm	800mm	1000mm	1300mm
Processing thickness	0.8-80mm (0.03in-3.1in)	0.8-80mm (0.03in-3.1in)	0.8-80mm (0.03in-3.1in)	0.8-80mm (0.03in-3.1in)
Feeding speed	39-196in/min	39-196in/min	39-196in/min	39-196in/min
Rubber roller diameters	165mm    (6.49in)	165mm(6.49in)	195mm(7.67in)	240mm(9.44in)
Total power	15kw	24kw	31kw	52kw
Air pressure	≥0.55Mpa	≥0.55Mpa	≥0.55Mpa	≥0.55Mpa
Dimensions(in)	110x43x79	129x59x90	149x83x92	165x83x92.5
Weight	1800kg	2900kg	4000kg	4800kg
Voltage	380V Three Phase
Grinding shelf	Standard: two sanding belts+ edge rounding rollers; Customizable: multable sanding belts/ edge rounding rollers/polishing rollers
Option	Dust collector/Vacuum table/Independent cantilever display
